Rotunda
Patient Transfer Aid
The risk of back pain and other musculoskeletal disorders (MSDs) is a very real issue for carers and nurses.
Consider the amount of physical effort that is required and the awkward positions that a nurse or carer may have to get into when transferring a patient from sitting to standing to sitting. The use of a Rotunda patient transfer aid can remove the need for manual handling and lower the risk of injury to the carer, whilst providing a safer, more dignified and comfortable transfer solution for the patient.
Robust, strong and built to last
Handmade in Haverhill since 1987, following consultation with our clients the original Rotunda has been engineered and adapted and is now the leading patient transfer aid on the market.
Thousands are used in NHS and private hospitals, care homes and residences up and down the country.
Manufactured from premium steel it is robust, strong and built to last by our team of craftsmen.
A safer, more comfortable and dignified experince for the patient
The sturdy frame instils confidence in the patient as they make the transition between a bed, seat, commode or wheelchair. The wide turntable provides a stable and safe area that the patient can confidently step on to while the transfer takes place. The Rotunda rotates between five different positions with a locking device to ensure patient safety.
The Patient’s risk and fear of falling is diminished with the high visibility features for hand and feet placement. The curved support frame provides added security and peace of mind as the patient is actively involved in the transfer, which will help improve their circulation and they can enjoy a sense of independence rather than just being passively lifted from one place to another.
A simplified, less risky solution for the carer
To the uninitiated moving a person with limited mobility from a bed to a wheelchair may seem like a very simple process. To the carer the risk of back injury in carrying out this task repeatedly throughout the day is a very real occupational hazard. Fortunately using the Rotunda patient transfer aid greatly diminishes this risk as it eliminates the need to lift the patient.
In the majority of cases, provided the appropriate risk assessment has been undertaken, a single carer can manage the transfer when using the Rotunda, freeing up resources that can be utilised in other areas.
Large wheels make the Rotunda very easy to manoeuvre over all types of floor coverings including carpet.
How the Rotunda works
An animated guide
Patient transfer is simple and easy using the Rotunda transfer aid.
VAT exempt?
For more information about VAT exemption, please visit our FAQ's
If you would like to speak with us, please call 01440 702811
Standard Frame Rotunda (RS1G) shown with knee support
(RAKS3)
The standard frame Rotunda is designed for users who can weight bear.
For safety and comfort we recommend the use of the Knee Support accessory - available separately or at the time of purchase.
- Width between Handles: 4530mm narrowing to 360mm
- Overall Height: 1015mm
- Overall Width: 670mm (will pass through standard door frame)
- Overall Width when Gutter Arm Supports are included: 720mm
- Overall Depth: 670mm
- Handle Height: (from floor) 740mm
- Turntable Diameter: 457mm
- Unit weight: 14kgs
All Rotundas have a maximum turntable load of 250kg (39 stones)
Standard Frame Rotunda (RS1) with knee support
(RAKS1)
The standard frame Rotunda is designed for users who can weight bear.
For safety and comfort we recommend the use of the Knee Support accessory - available separately or at the time of purchase.
- Width between Handles: 435mm narrowing to 260mm
- Overall Height: 1015mm
- Overall Width: 670mm (will pass through standard door frame)
- Overall Width when Gutter Arm Supports are included: 720mm
- Overall Depth: 670mm
- Handle Height: (from floor) 780mm
- Turntable Diameter: 457mm
- Unit weight: 14kgs
All Rotundas have a maximum turntable load of 250kg (39 stones)
Bariatric Frame Rotunda (RB2G) with knee support (RAKS3)
The Bariatric frame Rotunda is designed for users who can weight bear.
For safety and comfort we recommend the use of the Knee Support accessory - available separately or at the time of purchase.
- Width between Handles: 630mm narrowing to 380mm
- Overall Height: 1015mm
- Overall Width: 670mm (will pass through standard door frame)
- Overall Width when Arm Supports are included: 720mm
- Overall Depth: 670mm
- Handle Height: (from floor) 740mm
- Turntable Diameter: 457mm
- Unit weight: 14kgs
All Rotundas have a maximum turntable load of 250kg (39 stones)
Bariatric Frame Rotunda (RB2G) shown with knee support (RAKS1)
The Bariatric frame Rotunda is designed for users who can weight bear.
For safety and comfort we recommend the use of the Knee Support accessory - available separately or at the time of purchase.
- Width between Handles: 530mm narrowing to 270mm
- Overall Height: 1015mm
- Overall Width: 670mm (will pass through standard door frame)
- Overall Width when Gutter Arm Supports are included: 720mm
- Overall Depth: 670mm
- Handle Height: (from floor) 780mm
- Turntable Diameter: 457mm
- Unit weight: 14kgs
All Rotundas have a maximum turntable load of 250kg (39 stones)
Height Adjustable Frame Rotunda (RSHA1) shown with knee support (RAKS3)
Available in grey.
The standard height adjustable frame Rotunda is designed for users who can weight bear.
For safety and comfort we recommend the use of the Knee Support accessory - available separately or at the time of purchase.
- Overall Height: 960-1090mm
- Width between handles: 420mm
- Overall Width: 670mm (will pass through standard door frame)
- Overall Width when Gutter Arm Supports are included: 720mm
- Overall Depth: 670mm
- Handle Height: (from floor) 720-930mm
- Turntable Diameter: 457mm
- Unit weight: 13kg (29lb)
All Rotundas have a maximum turntable load of 250kg (39 stones)
Accessories
Complement your Rotunda Patient Transfer Platform with our range of accessories

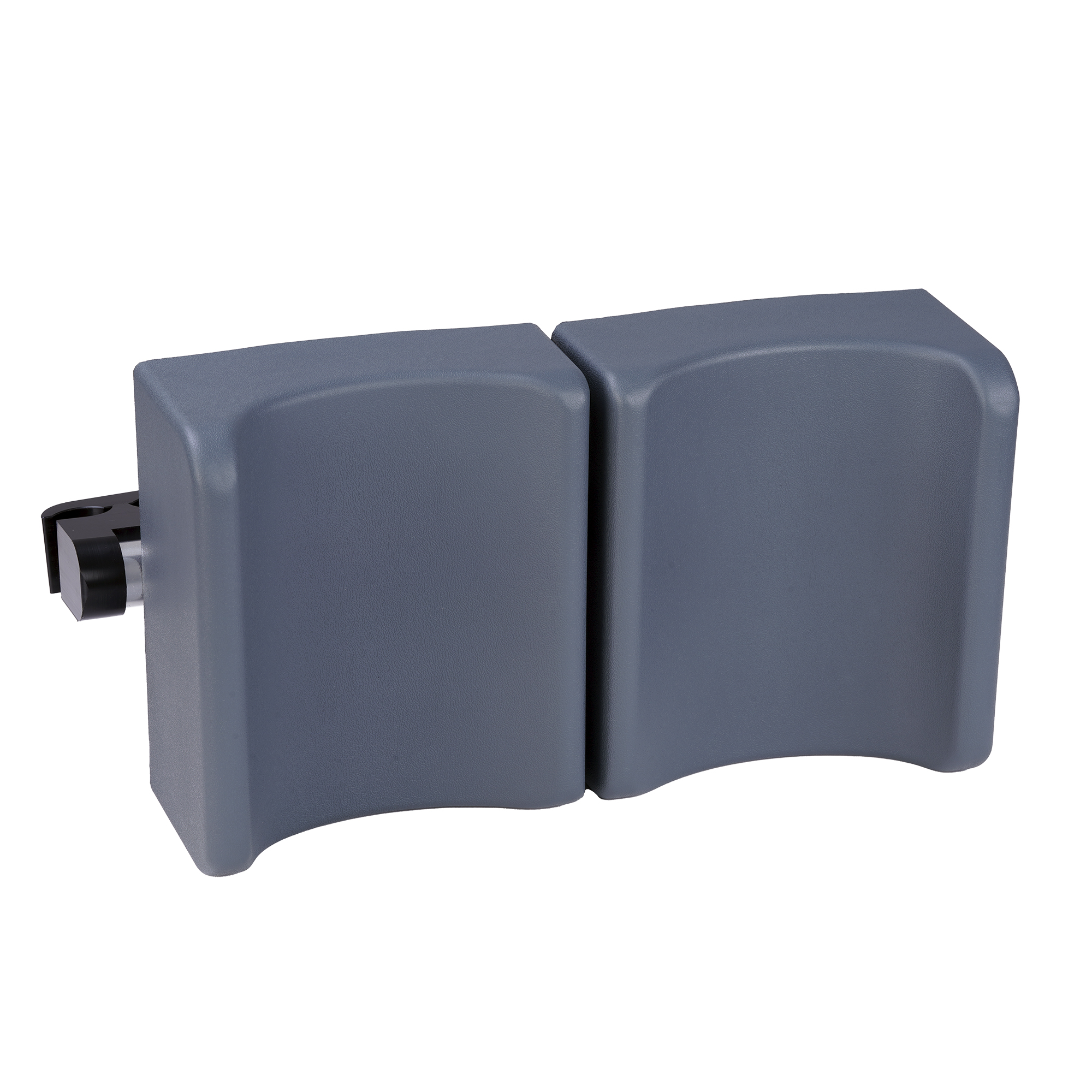

The Rotunda swivel knee support RAKS3 for models RS1G, RB1G and RSHA1
The Rotunda knee support RAKS1 for models RS1 and RB1
Knee Supports
The padded knee support provides extra safety and comfort for the patient. The knee support is ideal for more infirm patients. The knee support can be ordered with the Rotunda at time of purchase or retro-fitted.

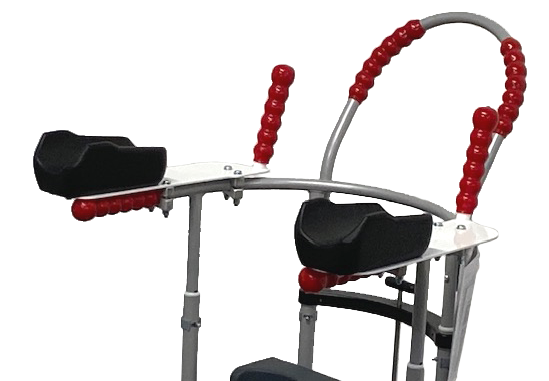

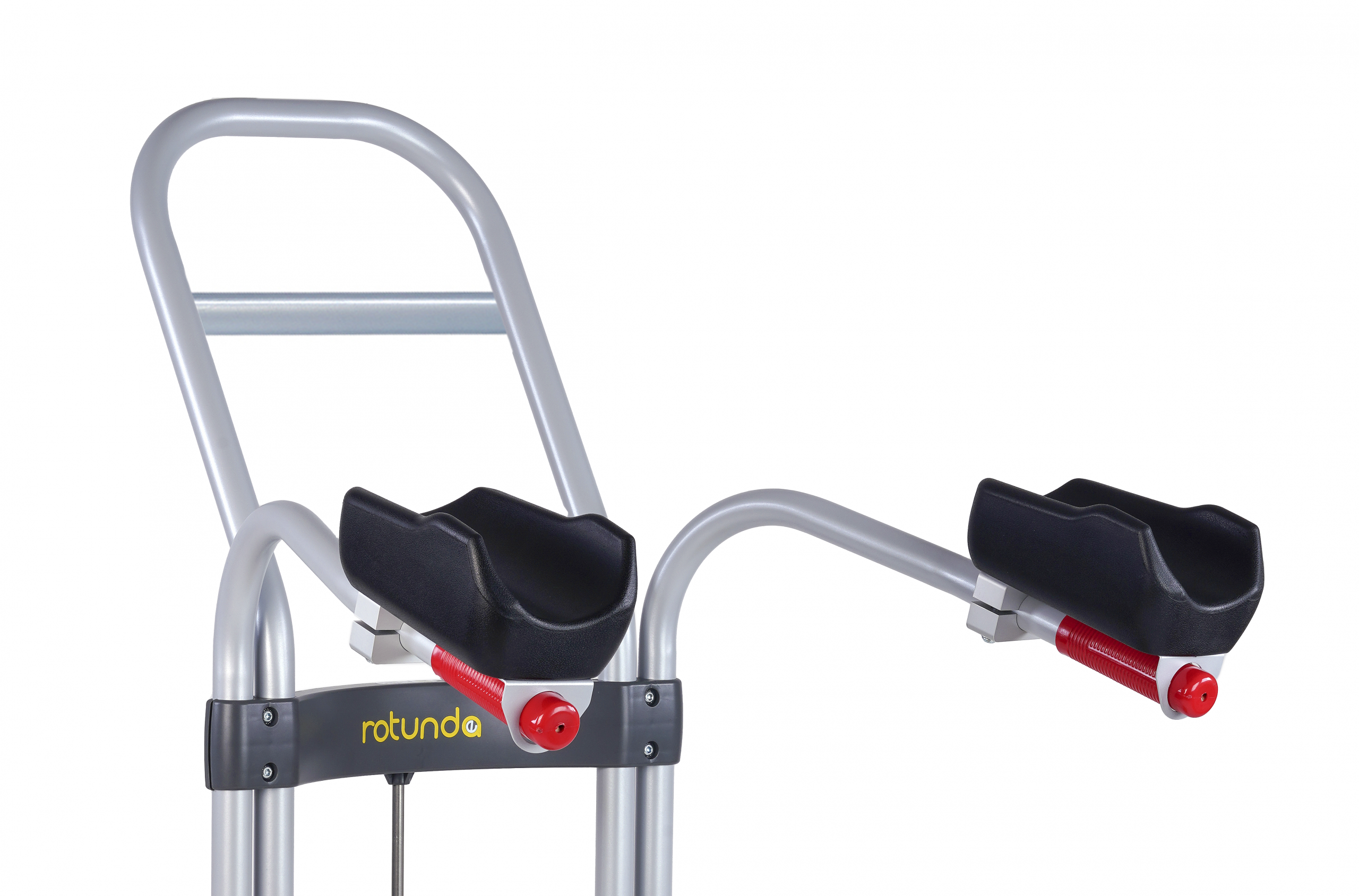

Arm Supports
Rotunda Arm Supports for all models
The arm supports are designed for use by patients who have a weakened grip. They feature padded troughs to support the forearm, reducing joint strain while improving stability.
Arm supports can be ordered with the Rotunda or retro-fitted.
Raising Block
(RARB4)
The Rotunda Raising Block is suitable for all models.
The Raising Block measures 395mm (15.5 inches) in diameter, and 102mm (4") high
By adding a raising block to the turntable base on the Rotunda it can be used to accommodate patients of smaller stature.
Rotunda Raising Blocks can be ordered with the Rotunda or retro-fitted onto an existing frame.
